how to wire a 4 way switch with 14/2 wire

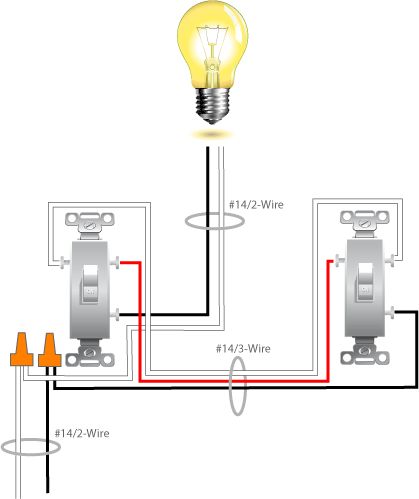

Fig 2 below shows how we achieve this configuration. The load wire may have red electrical tape on it to differentiate.
How Do I Convert A Light Circuit With A Single Pole Switch To Use Two 3 Way Switches Home Improvement Home Electrical Wiring House Wiring Electrical Wiring
A 2 wire 142 or 122 is used as travelers between each switch from the first 3 way to the 4 way and from the 4 way to the 2nd 3 way.
. We stock thousands of electrical parts such as wire electrical supplies automotive wire fuse blocks battery cable wire terminals automotive electrical circuit breakers wire looms. By wiring a 2-way switch The circuit below shows the basic concept of electricity flow to the load. How to wire 2 way light switch in this video we explain how two way switching works to connect a light fitting which is controlled with two light switches.
Form a junction by joining the two white wires from the 142 and the 143 cable. This is a completed circuit. The same wire goes to the black terminal of the second bulb and you are using more bulbs connect it to them as well.
Many of our wiring products are made in the USA. For the far left 3-way to work the Circuit A black wire must connect to the common sometimes a black screw terminal on the far left 3-Way. Black wire Power or Hot wire.
The electricity flows from the hot wire black through the 2-way switch shown in off position and then to the light and returns through the neutral wire white. Now lets go over this type of setup. In this case a 14-2 cable is used to power the 4-way switch fixture first.
There is another wire connector securing the 143 white wire to the 142 white wire of the light cable. Wiring a 4 Way Switch with Light at the End. To switch from two locations youll need 2 two way switches and.
I changed the wiring on the far left switch slightly. Secondly is one wire always hot on a 3 way switch. To wire the lights you just need one conductor to get the hot to the last light and one conductor to get the neutral to the 1st light.
Link The Black Wire From The 142 Cable With The Golden Screw Of The First Light. Then you just use 142 to connect all the lights hot and neutral. The first and 3rd switches are 3 way switch note that its also known with the name of 2 way switch.
When wiring a 2-way switch circuit all youre really doing is controlling the power flow Switching offon to the load a light lamp outlet ceiling fan etc Now a typical circuit will contain a 3-wire cable known as romex. The cable consist of a black wire a white wire and a bare copper wire. Decora rocker 4 way ac quiet switch how to wire a leviton 15 amp 54504 2 z wave installation operation electric 20 preferred toggle wiring electrical 101 diagrams do it single pole convert 3 works and 5638 2w best smart light switches with diagram gfci combo outlet or three maintenance solution lv diy troubleshooting 5624 2t plus 5628 home.
45 out of 5. Yes the switch loop is different from the travelers. The red wire connects the switches normally open terminals and the black wire connects the normally closed terminals.
4 way switch wiring diagrams do it yourself help com. Floor Lamp Standing Lamp 9W LED Torchiere Floor Lamp with 4W Adjustable Reading Lamp 3000K Energy-Saving LED Bulbs 3 Way Switch 50000hrs Lifespan Floor Lamps for Bedroom Living Room Office. The 143 cable connects the 2 switches.
You run a 14-2 cable from the lightbulb to one switch and connect the black to the bulb on one side and the common connector of the switch. How to wire 4 way light switch and intermediate switch in this video we explain how four way intermediate switching works to connect a light fitting which i. Perhaps a photo might help.
The electrical source is at the first 3 way switch and the hot wire connects to the common there. If one of the black hot wires does have power then that is the wire for the always on plug. How to wire a 4 way switch in 2020 light switch wiring 4 way light switch 3 way switch wiring.
4 Way Switch Wiring 4-Way Switches provide switching from three or more locations. Then there are two 14-3 cables leaving the 4-way switch fixture one 14-3 cable going to the first 3-way switch and the other one to the second 3-way switch. If more than three switches are needed simply place more 4-way switches between the three way switches.
Attach the white wire from the 142 feed to the white wire on the switch using a wire nut. A 2 wire 142 or 122 is used as travelers between each switch from the first 3 way to the 4 way and from the 4 way to the 2nd 3 way. A second 2 wire is run from the first 3 way passing through the 4way switch box and on to the 2nd 3 way where the white is used to feed the neutral to the light and the black is capped off.
Please check this assumption is correct. In this basic 4 way light circuit 3-wire cable runs between all the switches and 2-wire cable runs from the last switch to the light. The electrical path is throught the switches then backwards through the lights and back to the neutral at the 1st switch.
WiringProducts is the online place to buy automotive wiring electrical supplies. After that a 14-2 cable is used to connect the second 3-way switch to the light fixture. Again this wire connection is completed inside the UP Switch electrical box.
A 2 wire 142 or 122 is used as travelers between each switch from the first 3 way to the 4 way and from the 4 way to the 2nd 3 way. Lets assume the load you are controlling is a light. As you will see most 4-way switch wiring is placed between the wiring of two 3-way switches therefore a 4way switch is installed with two 3way switches.
Your switch may have slots to push the wires straight into place rather than use the screws on the side. EMERGENCY Phone HELP from Tim - Call is FREE if not satisfied. Remove 34 inch of coating from the end of the black and white wire using wire strippers.
Its not clear how the 4-way could function as intended. The hot wire leading from the 3-way switch circuit will have no power since all power must travel through the switches. A four way switch is added when there are.
So confirming that there is a single 3-wire Romex in A and C right.
